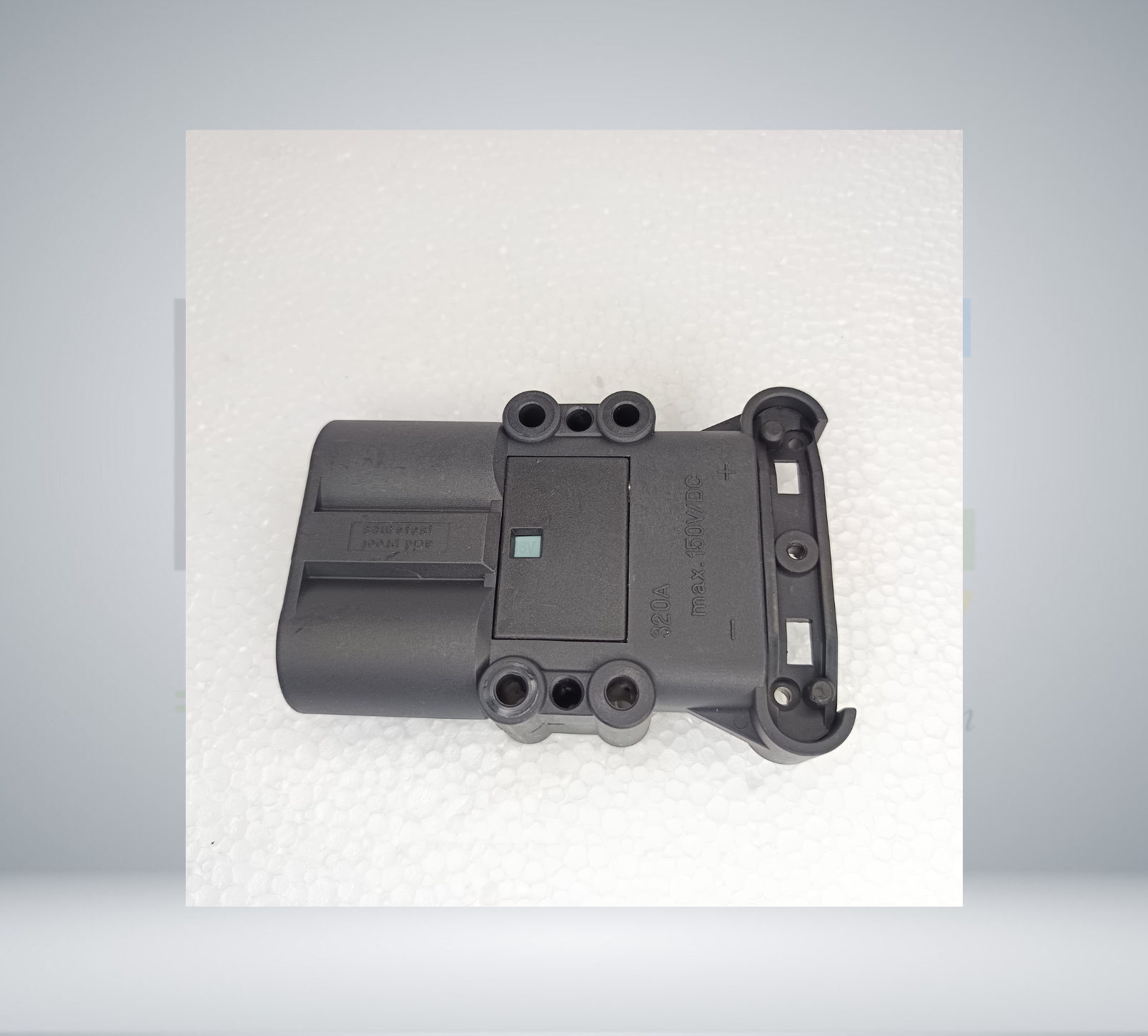

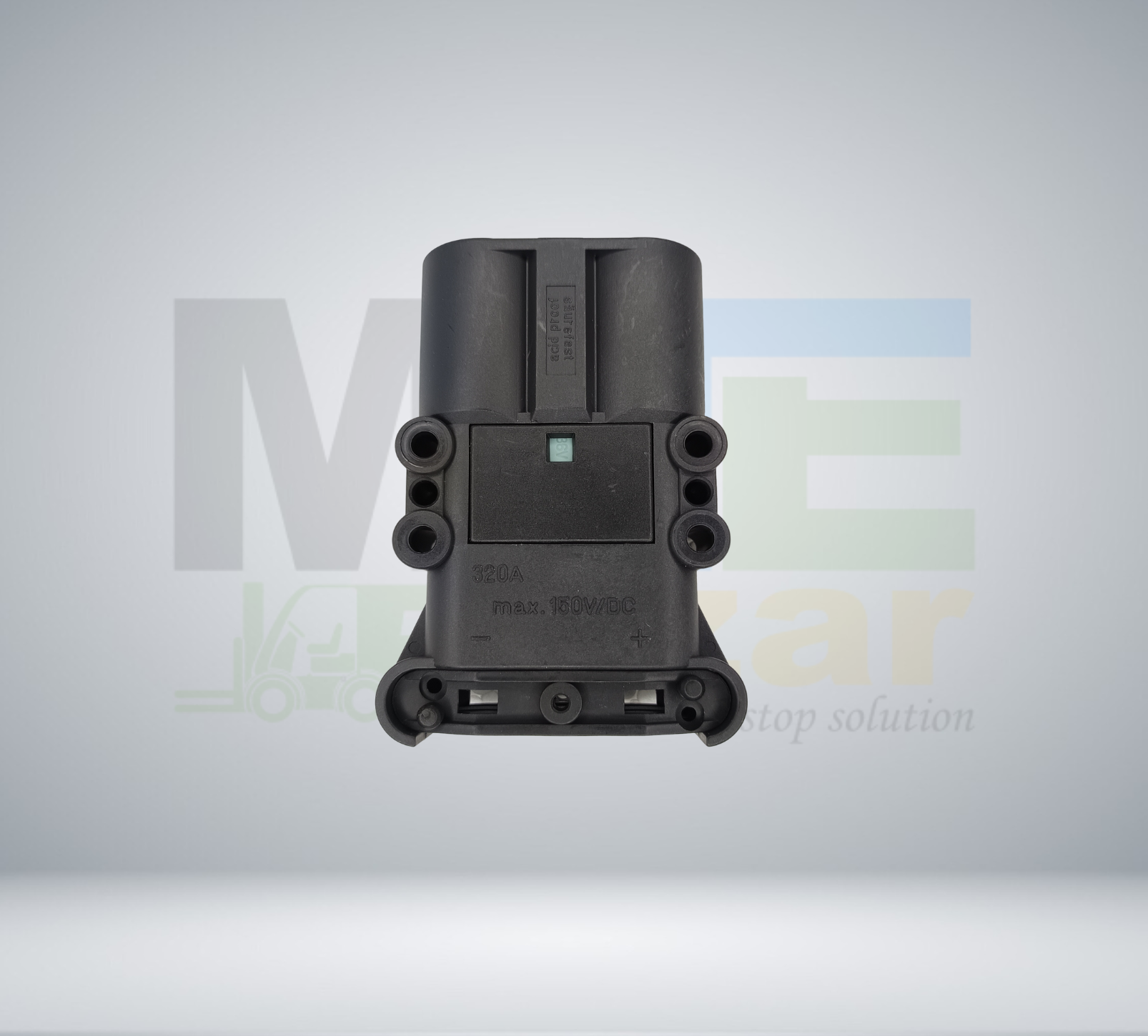

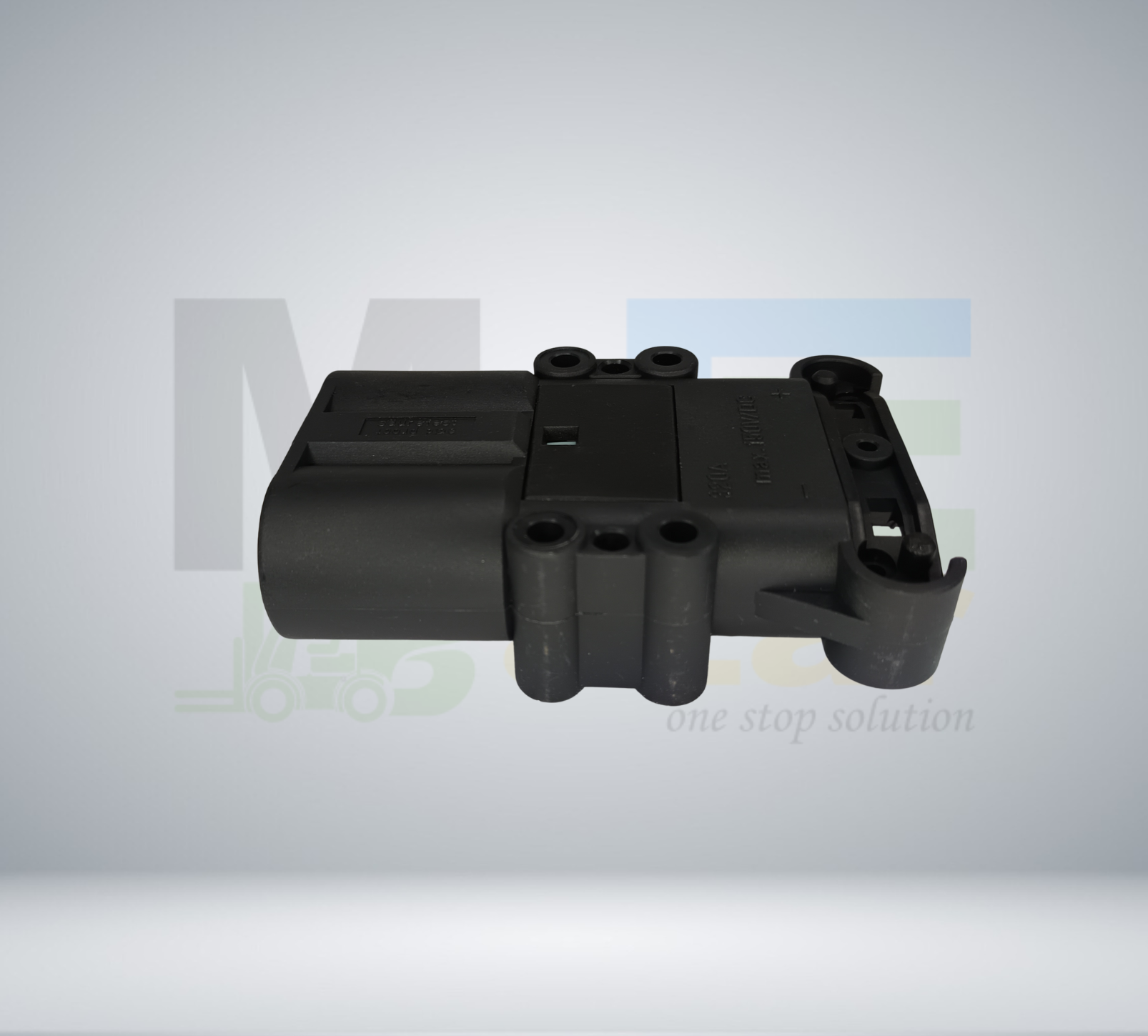

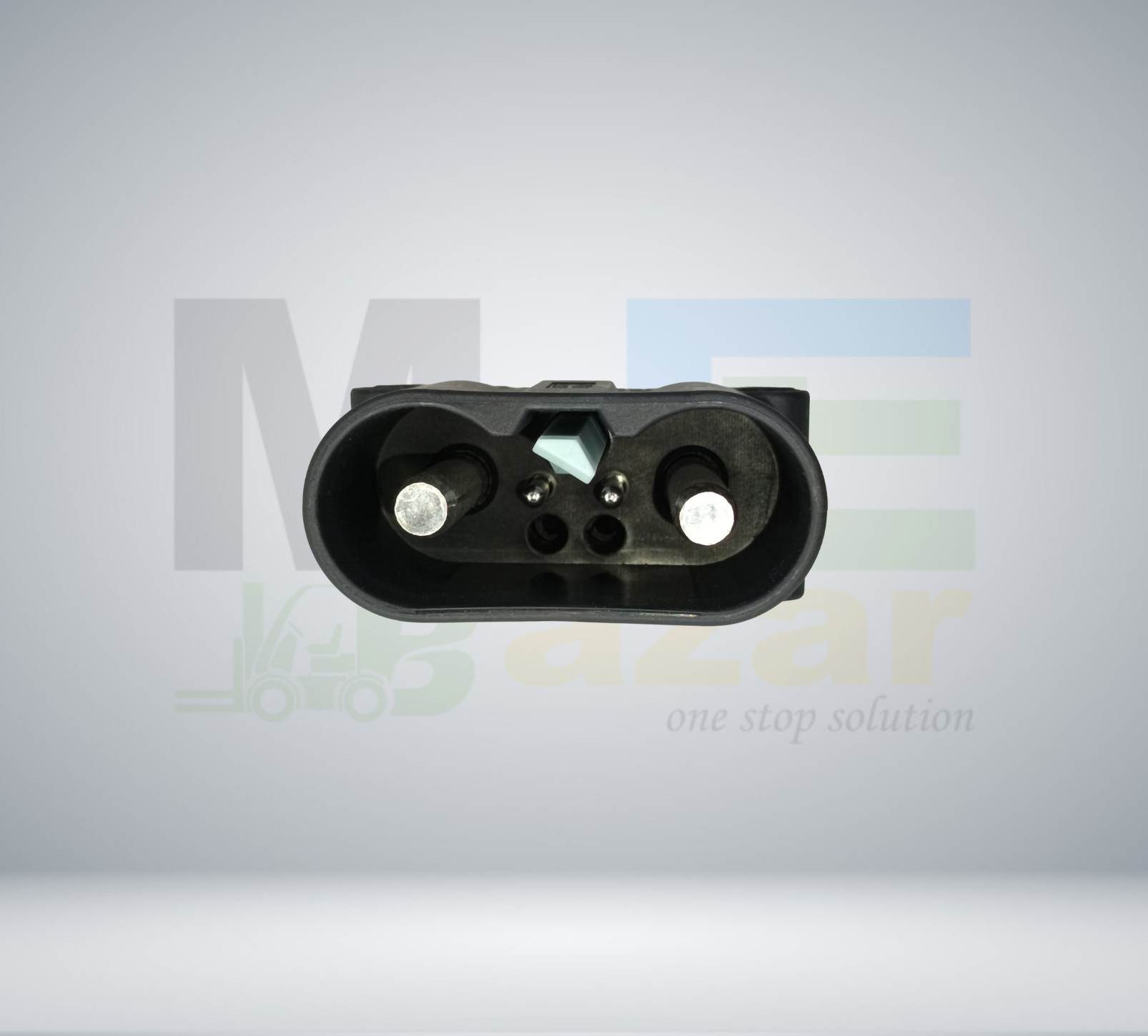

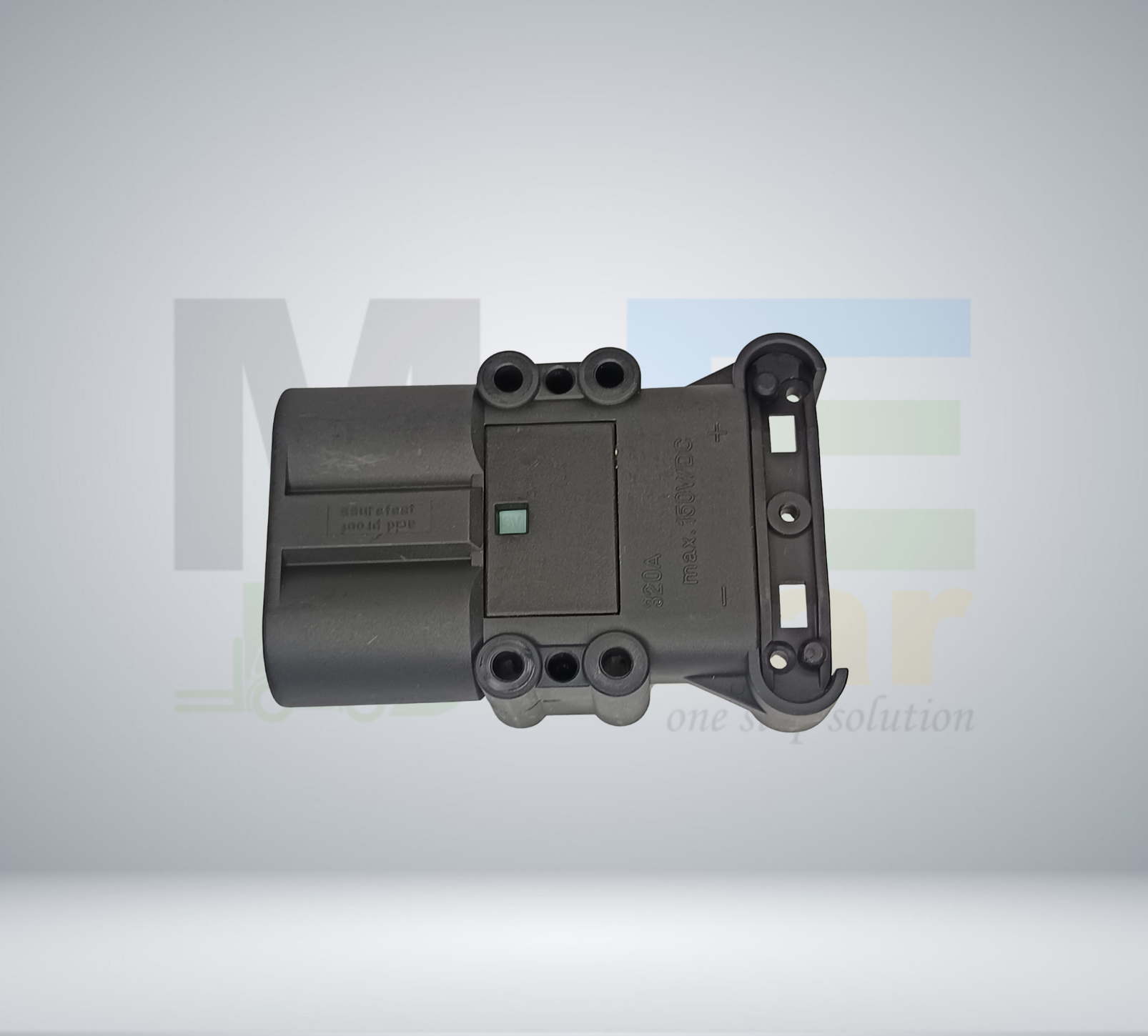

MHE Bazar DIN Connector 320A Male DC-M-320A-150V

The MHE Bazar DIN Connector 320A Male (DC-M-320A-150V) is a robust and reliable battery connector plug designed for high current DC power connections in industrial equipment. Built in accordance with DIN 43589, EN 1175-1, and IEC 20989 standards, this DIN connector 320A male ensures safe, stable, and efficient power transmission in demanding environments.

Manufactured using electrolytic copper contacts with silver plating, this high current DC connector provides excellent conductivity and minimal power loss. The glass fiber reinforced or acid resistant polyamide housing ensures durability, mechanical strength, and resistance to harsh operating conditions.

Designed for compatibility with multiple cable sizes and offering optional auxiliary contacts, this forklift battery charging connector is ideal for forklift battery systems, charging stations, and other high current applications, ensuring long lasting performance and operational safety.

Key Features – DIN Connector 320A Male

High Current Capacity: Rated for 320A, supporting heavy duty power transmission in industrial equipment.

Industry Standard Compliance: Manufactured as per DIN 43589, EN 1175-1, and IEC 20989 standards.

Silver Plated Copper Contacts: Delivers excellent conductivity and minimal power loss during operation.

Durable Housing: Glass fiber reinforced or acid resistant polyamide housing provides strength and chemical resistance.

Flexible Cable Compatibility: Supports multiple cable sizes from 50 to 95 mm² for versatile installation.

Wide Temperature Range: Operates reliably between -20°C and +90°C, suitable for varied industrial conditions.

Specifications – DIN Connector 320A Male

Frequently Asked Questions

1. What is the DIN Connector 320A Male used for?
It is used as a battery connector plug for high current DC power connections in forklift battery systems, charging stations, and other industrial equipment.

2. What standards does this connector comply with?
This connector is manufactured in accordance with DIN 43589, EN 1175-1, and IEC 20989 standards.

3. What is the current rating of this connector?
This DIN connector has a high current capacity of 320A, suitable for heavy duty power transmission.

4. What material are the contacts made from?
The contacts are made from electrolytic copper with silver plating, providing excellent conductivity and minimal power loss.

5. What cable sizes is this connector compatible with?
It is compatible with multiple cable sizes ranging from 50 to 95 mm², allowing flexible installation.

6. What is the operating temperature range of this connector?
This connector operates reliably across a wide temperature range of -20°C to +90°C.

7. How do I get a quote for the DIN Connector 320A Male DC-M-320A-150V?
The MHE Bazar DIN Connector 320A Male is available for quote. Contact MHE Bazar for pricing, lead times, and availability.
