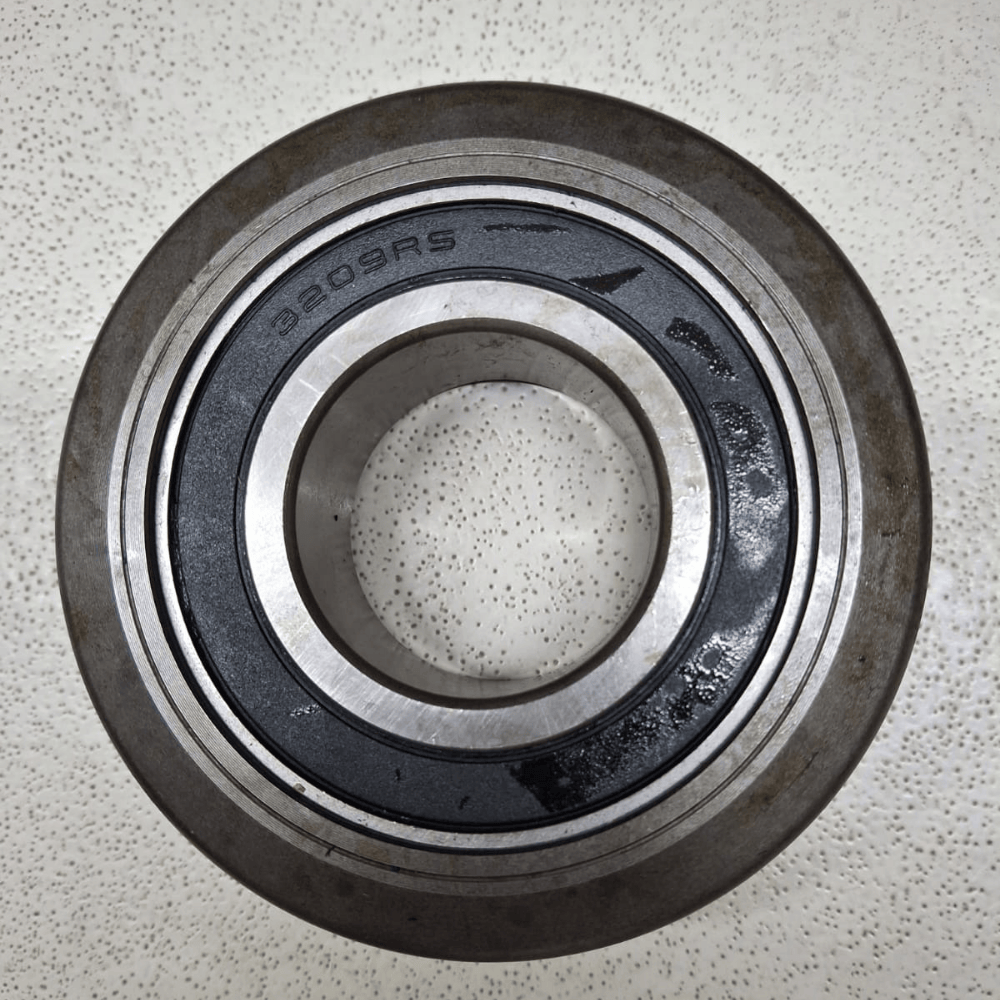

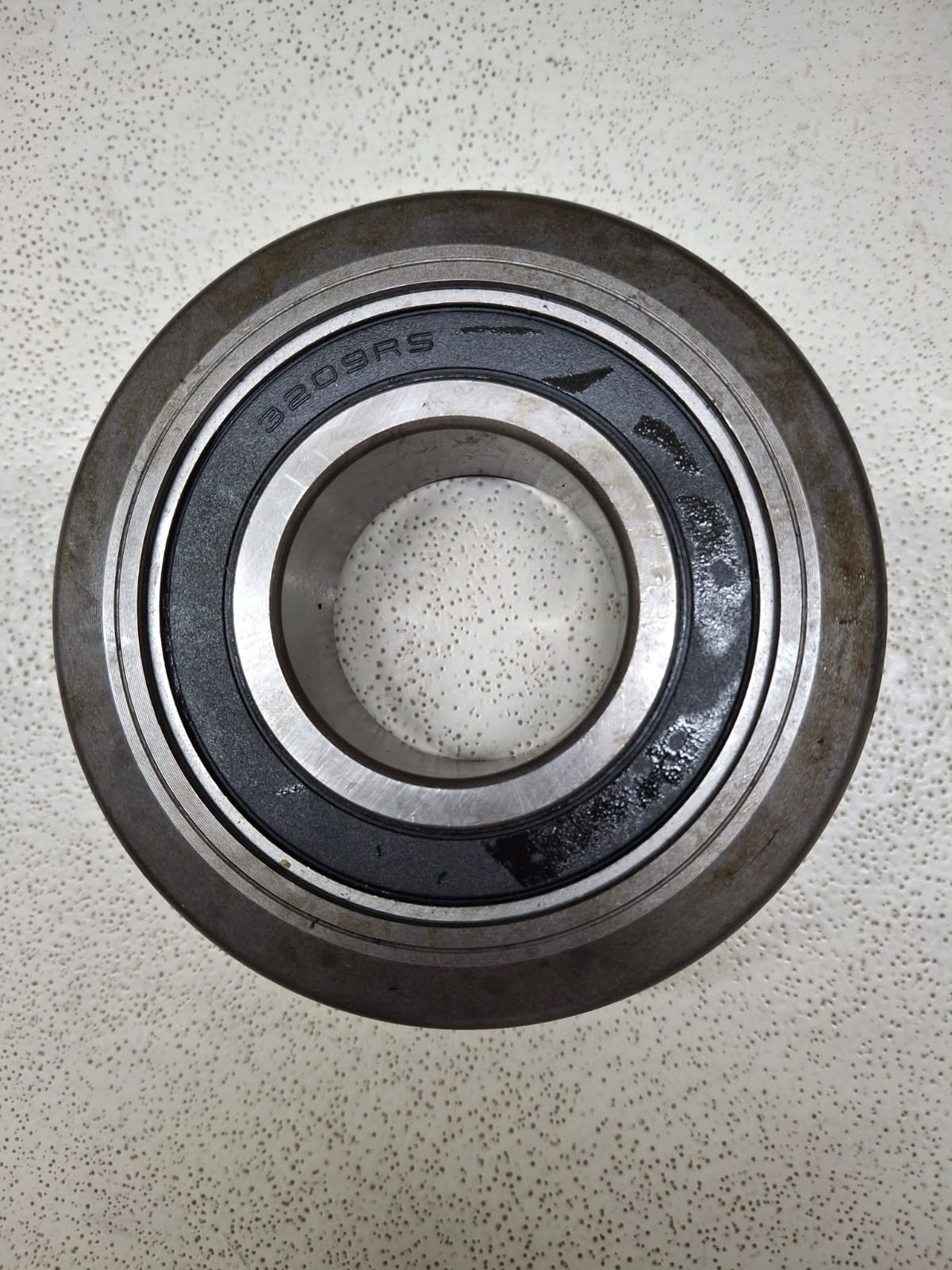

The Fork Carriage Bearing (Part No. 26M50042) is a precision-engineered double-row angular contact ball bearing (Type 3209RS) specifically designed to support the smooth, stable, and low-friction movement of the fork carriage in Aisle Master narrow aisle material handling equipment. It is engineered for use in 45T QUAD Mast Aisle Master systems on 20WHE model multidirectional forklifts — where consistent carriage alignment and reliable bearing performance are critical for safe and accurate load handling in very narrow aisle environments.
The fork carriage bearing plays a vital role in maintaining proper carriage guidance along the mast, absorbing both radial and axial loads generated during lifting and load handling cycles. A worn or failed bearing leads to carriage misalignment, increased mast wear, rough or inconsistent lifting motion, and can compromise load stability at height — making timely replacement essential for operational safety and equipment longevity.
Available in stock at MHE Bazar at Rs. 49,150 (excl. GST), this bearing is ready for immediate purchase and fast dispatch.
Key Features – 26M50042 Fork Carriage Bearing
Precision 3209RS Double-Row Angular Contact Ball Bearing: Designed to handle combined radial and axial loads for fork carriage applications.
Engineered for 45T QUAD Mast Systems: Specifically sized for Aisle Master 45T QUAD Mast assemblies.
Compatible with 20WHE Multidirectional Forklifts: Direct replacement part with correct fitment.
Maintains Fork Carriage Alignment: Supports smooth lateral and vertical carriage movement while reducing drift.
Reduces Friction and Wear: Low-friction rolling action helps extend mast and carriage component life.
Rubber-Sealed Construction (RS): Sealed on both sides to retain lubrication and prevent dust or moisture entry.
Durable for High-Cycle Operations: Built for repetitive lifting cycles, vibration, and warehouse conditions.
In Stock for Immediate Dispatch: Helps minimize downtime caused by bearing failure.
Specifications – 26M50042
Product Type: Fork Carriage Bearing
Part Number: 26M50042
Bearing Type: 3209RS (Double-Row Angular Contact Ball Bearing, Rubber Sealed)
Application: Fork carriage support on mast assembly
Compatible Mast System: 45T QUAD Mast Aisle Master
Compatible Equipment: 20WHE Multidirectional Forklift
Sealing: Rubber sealed (RS) on both sides
Condition: New
Availability: In Stock
Price (Excl. GST): Rs. 49,150
FREQUENTLY ASKED QUESTIONS
1. What does the fork carriage bearing do in a narrow aisle forklift?
The fork carriage bearing supports the fork carriage as it travels up and down the mast during lifting and lowering operations. It provides a smooth, low-friction rolling interface between the carriage assembly and the mast structure, absorbs the radial and axial forces generated by loads at height, and maintains precise carriage alignment throughout the mast travel range. Without functioning carriage bearings, the fork carriage will move erratically, wear the mast rails prematurely, and create unsafe load handling conditions — particularly at elevated heights in narrow aisle environments.
2. What is a 3209RS bearing and why is this type used in the fork carriage?
The 3209RS is a double-row angular contact ball bearing with rubber seals on both sides. The double-row design gives it the ability to handle both radial loads (perpendicular to the shaft axis) and axial loads (along the shaft axis) simultaneously — which is exactly the load combination experienced by a fork carriage bearing during lifting operations with offset or laterally positioned loads. The RS (rubber sealed) construction retains internal grease lubrication and prevents dust and debris ingress, making it well-suited for the demanding conditions of warehouse operations without requiring frequent re-greasing.
3. Which forklift models and mast systems is part number 26M50042 compatible with?
This bearing is specifically designed for the 45T QUAD Mast Aisle Master system on 20WHE multidirectional forklift models. If you need to confirm compatibility with a specific serial number or production variant of your equipment, contact MHE Bazar's technical team with your forklift's model and serial number before placing your order.
4. What are the signs that a fork carriage bearing needs to be replaced?
Common indicators of fork carriage bearing wear or failure include unusual noise (grinding, rattling, or clicking) during mast operation, rough or jerky fork carriage movement during lifting or lowering, visible lateral play or wobble in the fork carriage on the mast, uneven wear patterns on the mast rails or carriage rollers, and increased vibration during load handling at height. Any of these symptoms should prompt immediate inspection and replacement of the affected bearings to prevent progressive mast damage and unsafe load handling.
5. How many fork carriage bearings does a typical mast assembly require?
The number of carriage bearings required depends on the specific mast design and carriage configuration. In a 45T QUAD Mast Aisle Master system, multiple bearings are typically used at different carriage contact points to distribute loads evenly and maintain alignment. When replacing a failed bearing, it is good maintenance practice to inspect all other bearings in the same carriage assembly and replace them as a set if significant wear is evident, to avoid repeat failures in the short term. Contact MHE Bazar for guidance on the complete bearing set for your mast configuration.
6. Is this bearing in stock and how can I order it?
Yes. The fork carriage bearing (Part No. 26M50042) is currently in stock at MHE Bazar and available for immediate purchase and dispatch. You can add it to cart directly on the product page or contact the team at +91 73059 50939 or sales.1@mhebazar.com for bulk orders, complete maintenance kits, technical queries, or expedited delivery requirements.
