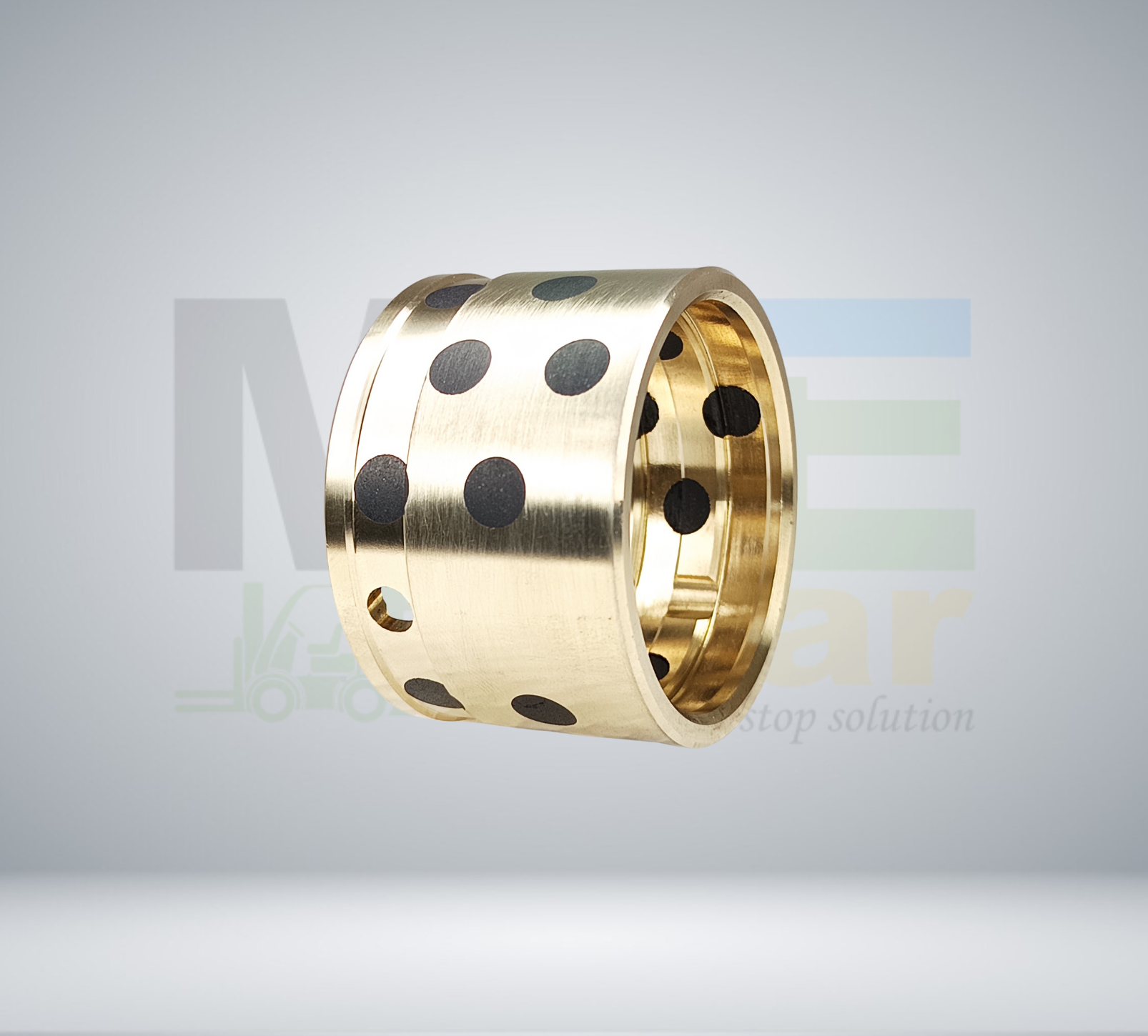

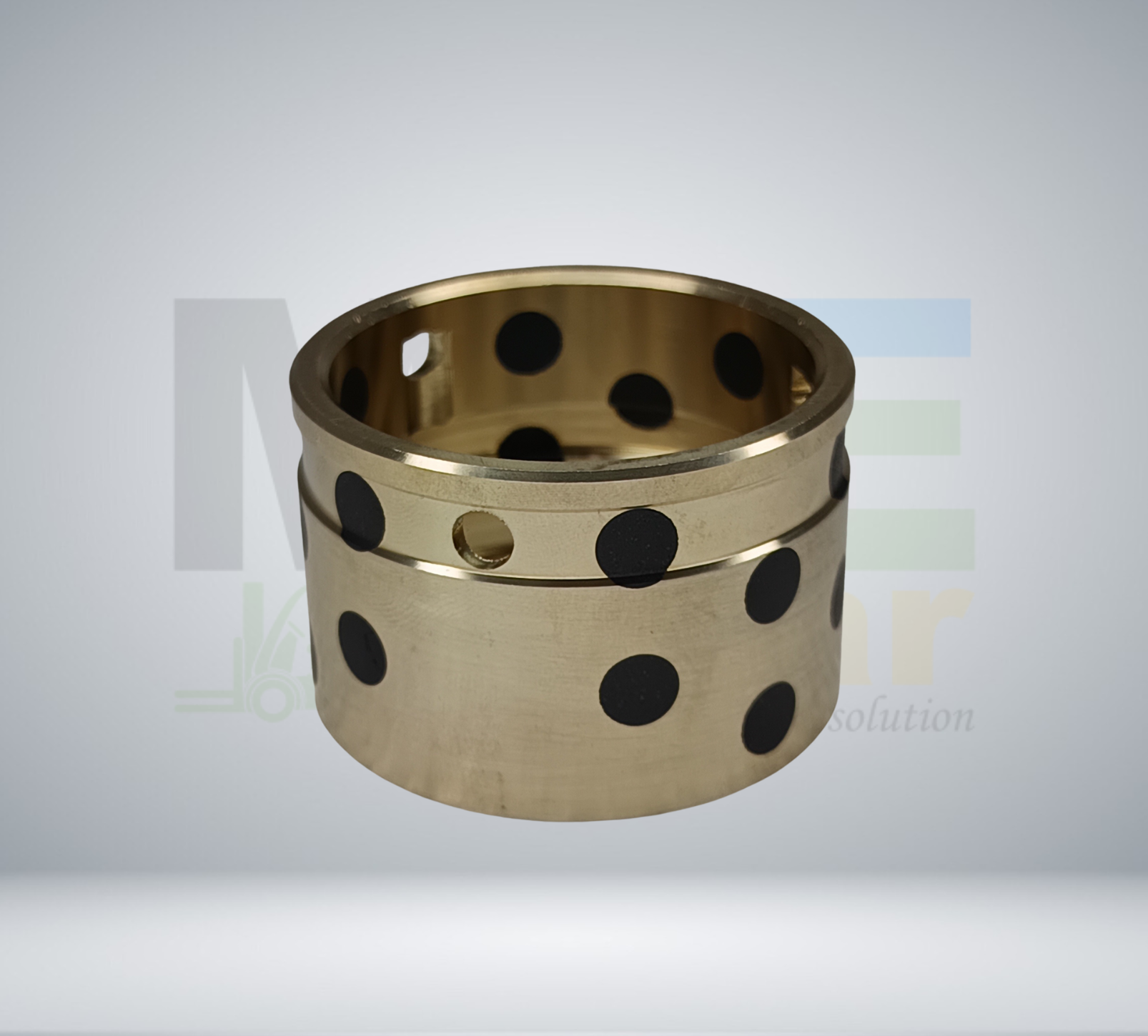

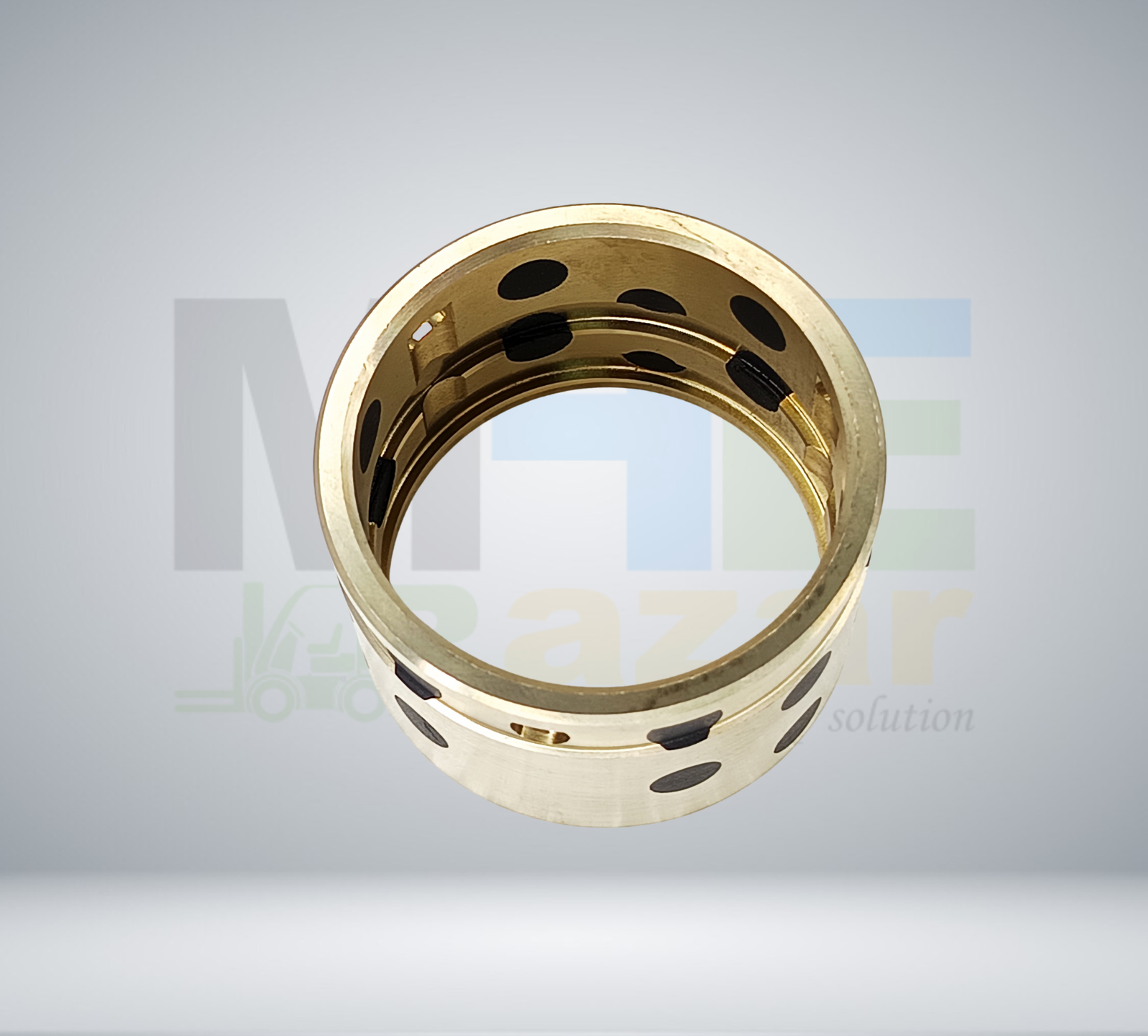

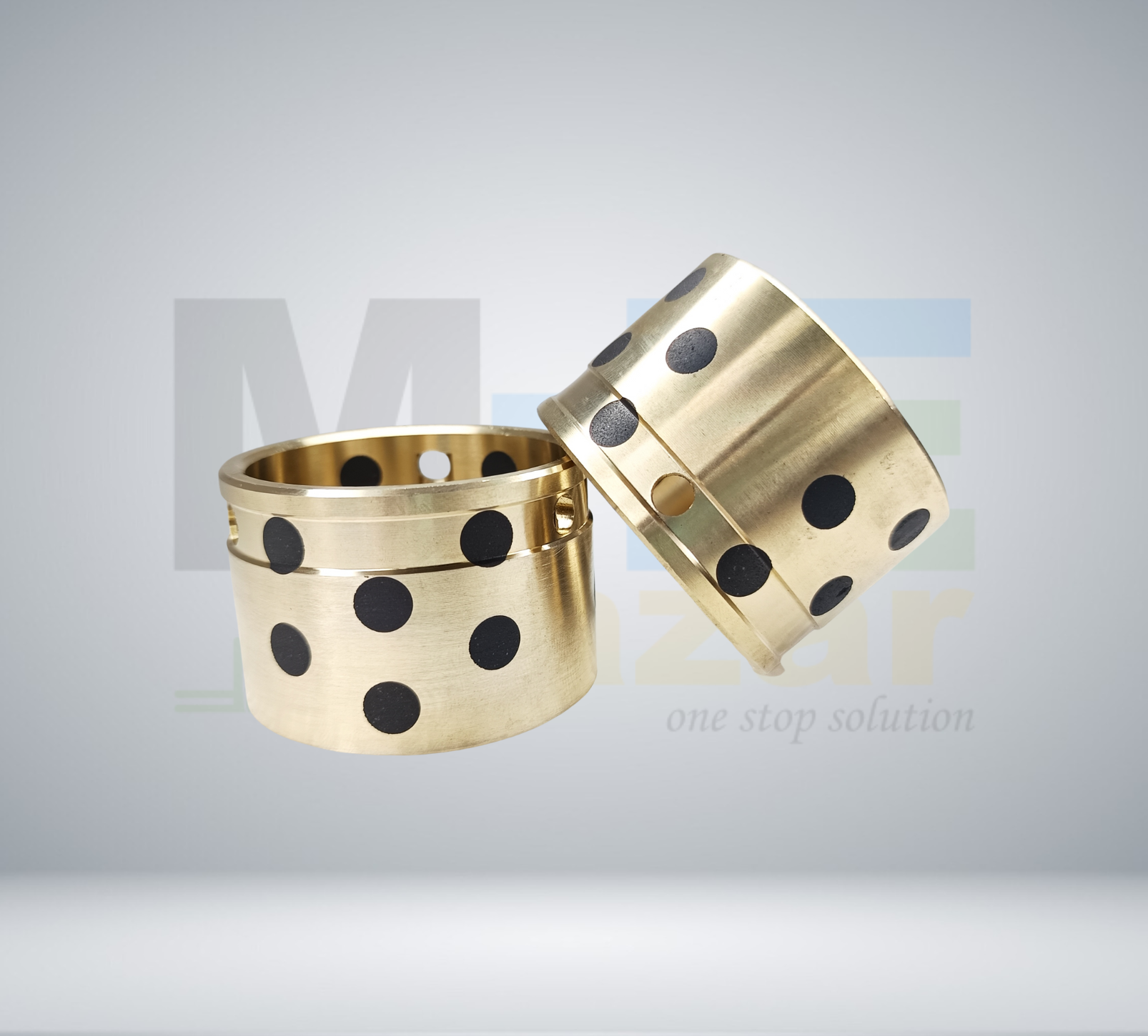

MHE Bazar Self-Lubricating Bronze Sleeve Baring 1035921-003

The MHE Bazar Self-Lubricating Bronze Sleeve Bearing (Part No. 13035921-00) is a premium quality bushing designed for high load and harsh industrial environments. Manufactured from high strength bronze alloy (C86300 / CuZn25Al6Fe3Mn3), this self lubricating bronze bushing offers exceptional durability, wear resistance, and long service life.

Equipped with solid graphite plugs, this bronze sleeve bearing provides continuous lubrication, enabling dry and maintenance free operation. It performs efficiently under extreme conditions, including dusty environments, high loads, and wide temperature ranges, making it a dependable graphite plug bronze bushing for demanding applications.

This self lubricating bearing is an ideal solution for applications where traditional lubrication is difficult or impractical, ensuring reliable performance and reduced downtime in critical machinery such as material handling equipment, construction machinery, and mining equipment.

Key Features – Self-Lubricating Bronze Sleeve Bearing

Self-Lubricating Design: Solid graphite plugs provide continuous lubrication for dry, maintenance-free operation.

High Strength Bronze Alloy: Manufactured from C86300 (CuZn25Al6Fe3Mn3) bronze for excellent durability and wear resistance.

High Load Capacity: Supports load capacity up to approximately 100 N/mm² for demanding applications.

Wide Temperature Range: Performs reliably across an extreme temperature range of -40°C to 300°C.

Low Friction Performance: Offers a low friction coefficient for smooth and efficient operation.

Corrosion and Dust Resistant: Provides excellent resistance to wear, corrosion, and dusty operating conditions.

Specifications – Self-Lubricating Bronze Sleeve Bearing

Frequently Asked Questions

1. What is the Self-Lubricating Bronze Sleeve Bearing 13035921-00 used for?
It is used as a bushing in heavy-duty industrial machinery and material handling equipment, providing continuous lubrication for dry, maintenance-free operation.

2. What material is this bushing made from?
It is manufactured from high strength bronze alloy C86300 (CuZn25Al6Fe3Mn3), offering excellent durability and wear resistance.

3. How does this bushing achieve self-lubrication?
It is equipped with solid graphite plugs that provide continuous lubrication without the need for external lubricants.

4. What load capacity does this bearing support?
This bushing supports a high load capacity of up to approximately 100 N/mm², suitable for demanding industrial use.

5. What temperature range can this bearing withstand?
It performs efficiently across an extreme temperature range of -40°C to 300°C.

6. Where is this bushing typically used?
It is used in heavy-duty industrial machinery, material handling equipment, construction equipment, mining machinery, and steel plants.

7. How do I get a quote for the Self-Lubricating Bronze Sleeve Bearing 13035921-00?
The MHE Bazar Self-Lubricating Bronze Sleeve Bearing is available for quote. Contact MHE Bazar for pricing, lead times, and availability.
